Monoblock Cutting Machine
Monoblock cutting machine XZQQ-625A is suitable for both of the small and big factories. It is good for cutting marble and granite in a manual or automatic way. It has the ability to cut max 3200mm length, 2000mm width and 175mm thickness. The blade holder head can tilt 45 degree to chamfer the stone. The table tilts up to 85 degree. It also rotates 45 and 90 degree automatically and rotates all degrees semi automatically. It is the ideal machine to cut size to size and countertop.
- SHENGDA
- QUANZHOU
- 15 DAYS
- 100 SETS/MONTH
- Information
- Video
Monoblock cutting machine XZQQ-625A is suitable for both of the small and big factories. It is good for cutting marble and granite in a manual or automatic way. It has the ability to cut max 3200mm length, 2000mm width and 175mm thickness. The blade holder head can tilt 45 degree to chamfer the stone. The table tilts up to 85 degree. It also rotates 45 and 90 degree automatically and rotates all degrees semi automatically. It is the ideal machine to cut size to size and countertop.

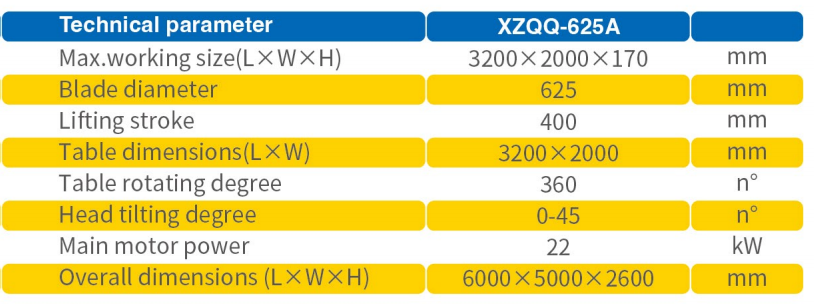

Technical Parameter:
Working thickness | 175mm |
Cutting disc diameter | 400-625mm |
Cutting length | 3200mm |
Cutting width | 2000mm |
Table rotating degree | 0-360° |
Table tilting degree | 0-85° |
Main motor power | 15kW |
Total power | 21kW |
Power requirement | 3Phs 380V 50Hz |
Water consumption | 4m3/h |
Installation space (L/W/H) | 6000*5000*2600mm |
Approximate weight | 7200kg |
