Brdige Horizongtal Block Cuter Machine
This machine is for cutting granite and marble blocks in small size. The combination of multiblade with different dimension increases working efficiency. It adopts two slider frame structure, driven synchronizely by double screw, high stiffness and stability.
- SHENGDA
- QUANZHOU
- 25 DAYS
- 60 SETS/MONTH
- Information
- Video
This machine is for cutting granite and marble blocks in small size. The combination of multiblade with different dimension increases working efficiency. It adopts two slider frame structure, driven synchronizely by double screw, high stiffness and stability.

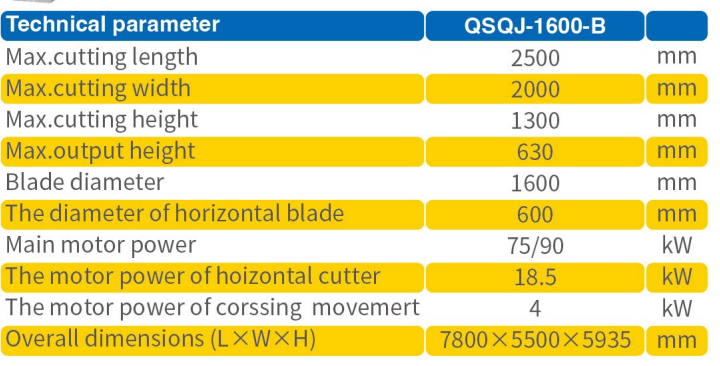

Technical Parameter
Max cutting length | mm | 2500 |
Max cutting width | mm | 2000 |
Max cutting height | mm | 1300 |
Max output height | mm | 630 |
Max blade diameter | mm | 1600 |
The diameter of horizontal blade | mm | 400-600 |
Main motor power | kw | 75 or 90 |
Motor power of horizontal cutter | kw | 15 |
Motor power of crossing movement | kw | 2.2 |
Speed of blade | rpm/min | 700-800 |
Electric power support | 3phs 380V 50HZ | |
Overall dimensions(LxWxH) | mm | 7350x5500x5300 |
Weight | mm | 12000kg |
