Bridge Middle Block Cuter Machine
Bridge Middle Block cutter machine is good for cutting marble and granite in a manual or automatic way. It has the ability to cut max 350mm thickness block. The table tilts automatically up to 85 degree. Table rotates 90 degree (90°or 360°) automatically by hydraulic.
- SHENGDA
- QUANZHOU
- 15 DAYS
- 100 SETS/MONTH
- Information
- Video
Bridge Middle Block cutter is good for cutting marble and granite in a manual or automatic way. It has the ability to cut max 350mm thickness block. The table tilts automatically up to 85 degree. Table rotates 90 degree (90°or 360°) automatically by hydraulic.

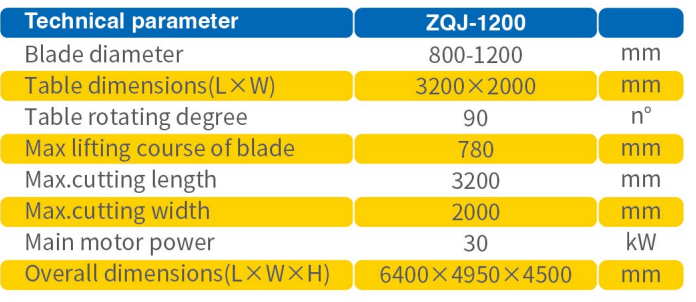

Technical Parameter
ZQJ Bridge middle block cutter | |||
ZQJ-1000 | ZQJ-1200 | ||
Diameter of blade | mm | 600-1200 | 800-1200 |
Table dimension (LxW) | mm | 3200x2000 | 3200x2000 |
Table rotation | nº | 90 | 90 |
Max lifting course of blade | mm | 780 | 980 |
Max longitudinal cutting size | mm | 3200 | 3200 |
Max cross cutting size | mm | 3200 | 3200 |
Max cutting thickness | mm | 350 | 450 |
Water consumption | m3/h | 4 | 4 |
Total motor power | kw | 28.7 | 28.7 |
Overall dimensions (LxWxH) | mm | 6400x4950x4300 | 6400x4950x4500 |
